Product Type£ºL62S DOUBLE SCISSOR LIFT


Design in accordance with EU standard, high quality super-thick steel.
Double scissor link structure for wider platform support.

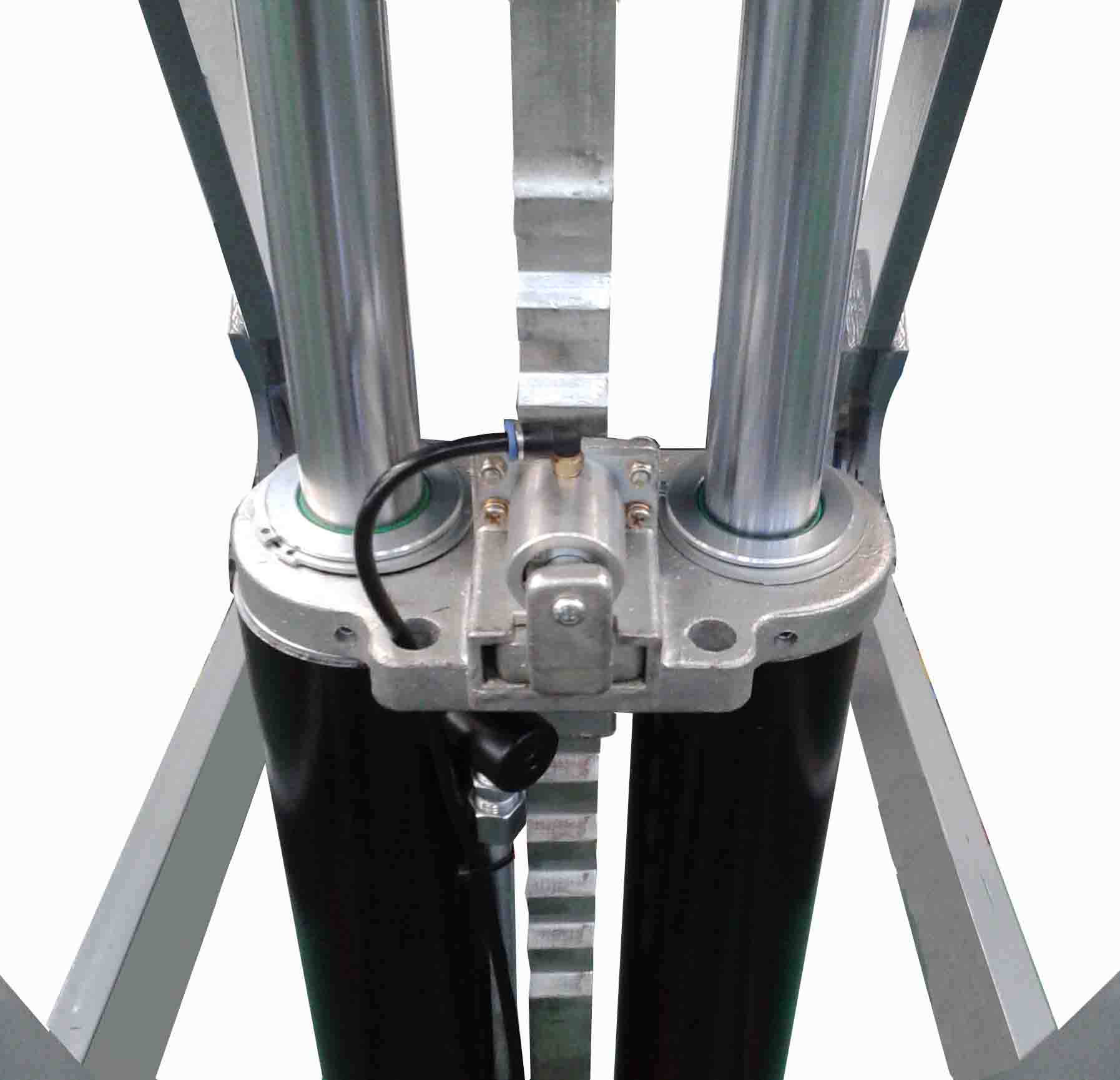

Master & Slave cylinder system composed by high-Performed durable hydraulic cylinders.
Easy synchronization control system by special hydraulic valves.

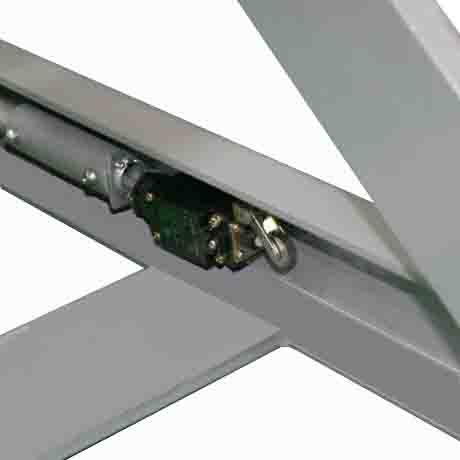

Air cylinder operated locking device. Pneumatic safety locking device prevent emergencies to guarantee operator and vehicle safety.

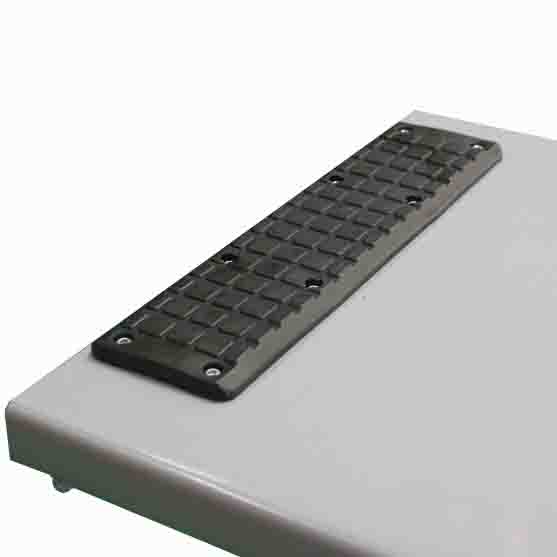

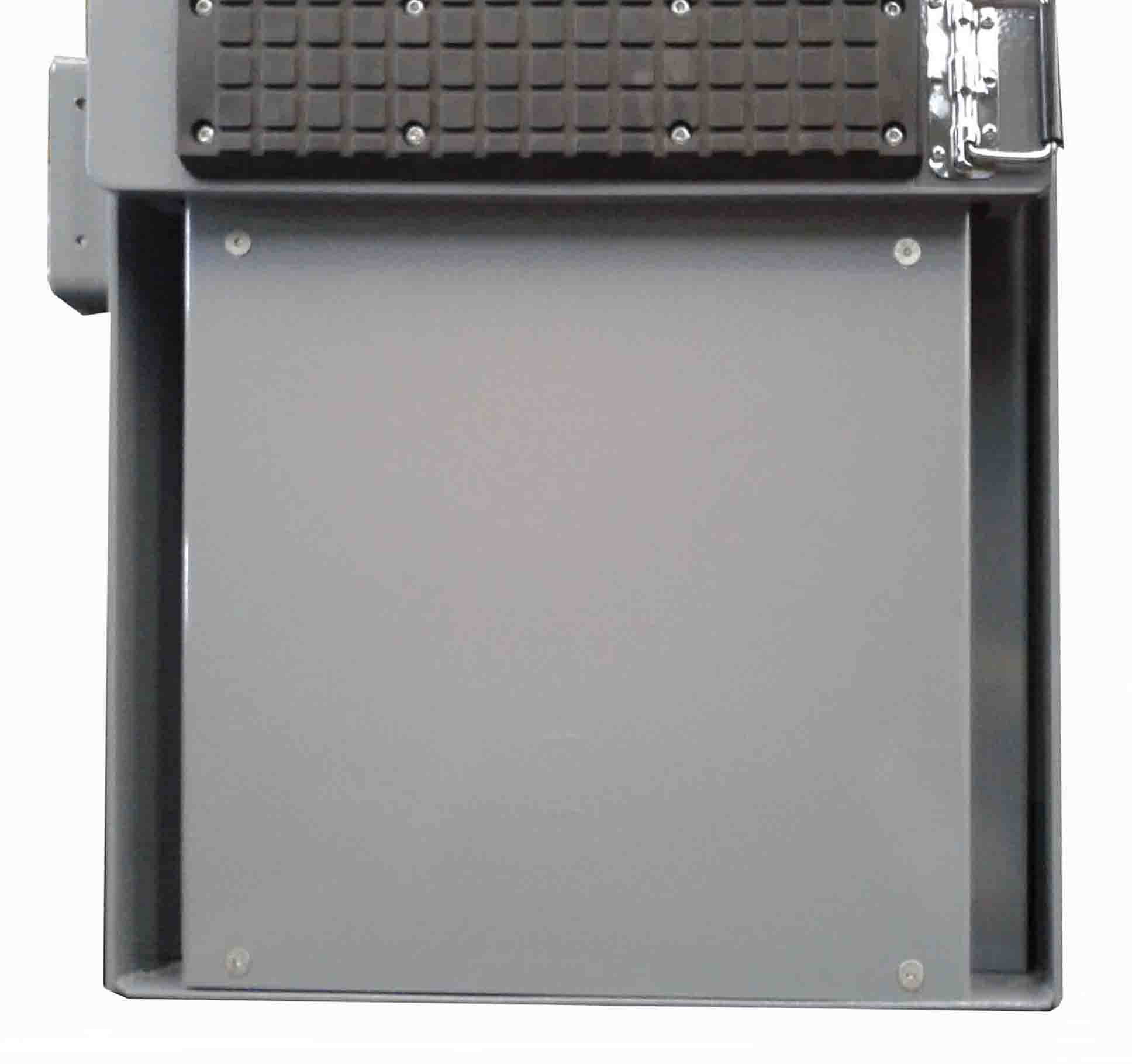

Rubber pads on the platform to protect the vehicle chassis.

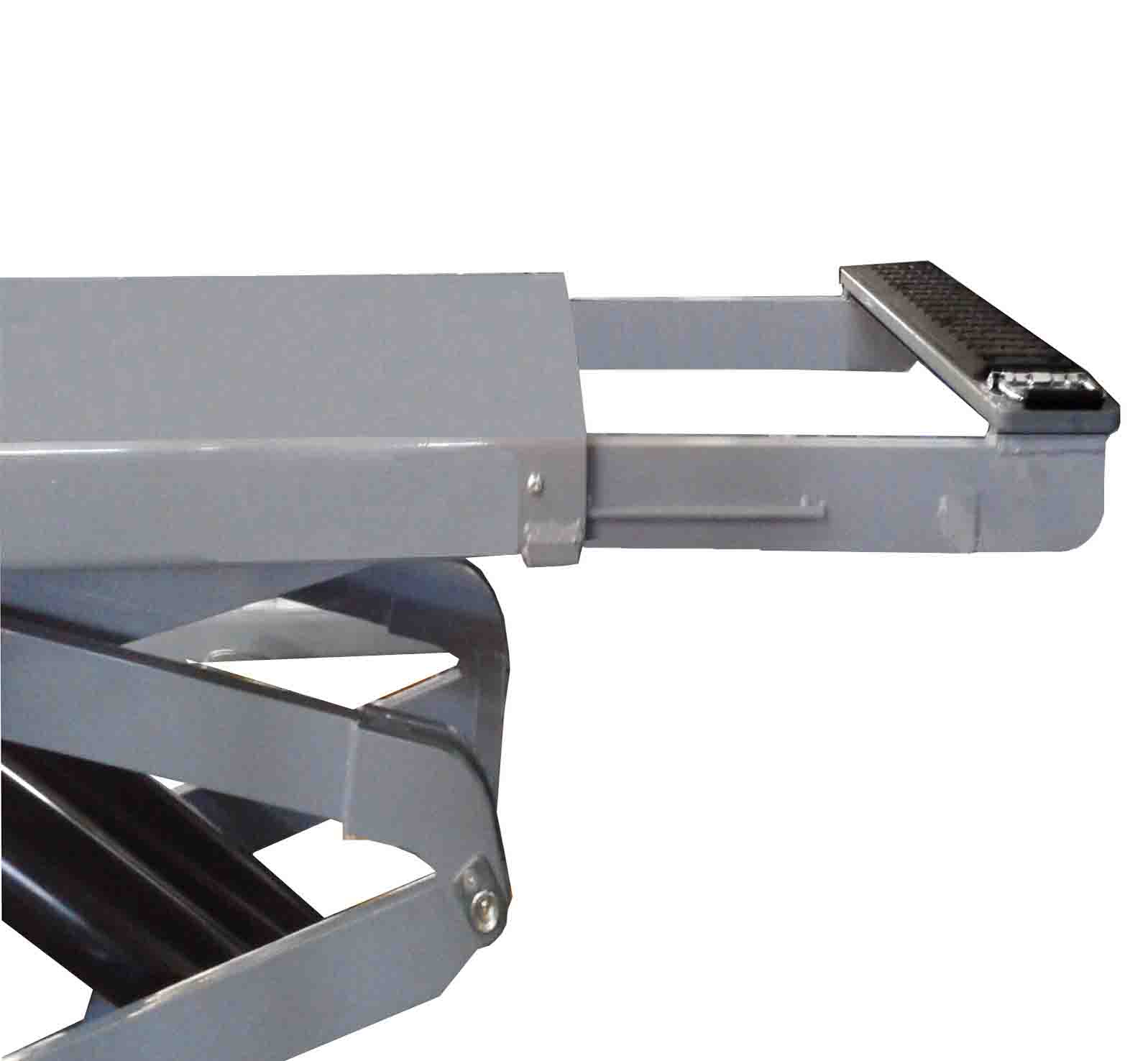

Platforms slide extensions. suitble for different length vehicle.
It can be installed in ground or on ground.
Cable remote control for any vantage point operation. (Low voltage)
115% dynamic and 150% static loading test.
Has CE Certification





  Lifting Capacity   3500kg
  Max.Lifting Height   2090mm
  Min. Height   190mm
  Lifting Time   About 65sec.
  Lowering Time   About 42sec.
  Packing Size   2150(L)x720(W)x620(H) mm
  Weight   980kg
  Power & Motor   1Phase(2.5HP, 4P, 220V, 50/60HZ)
  Power & Motor   3Phase(2HP, 4P, 220V/380V, 50/60Hz)

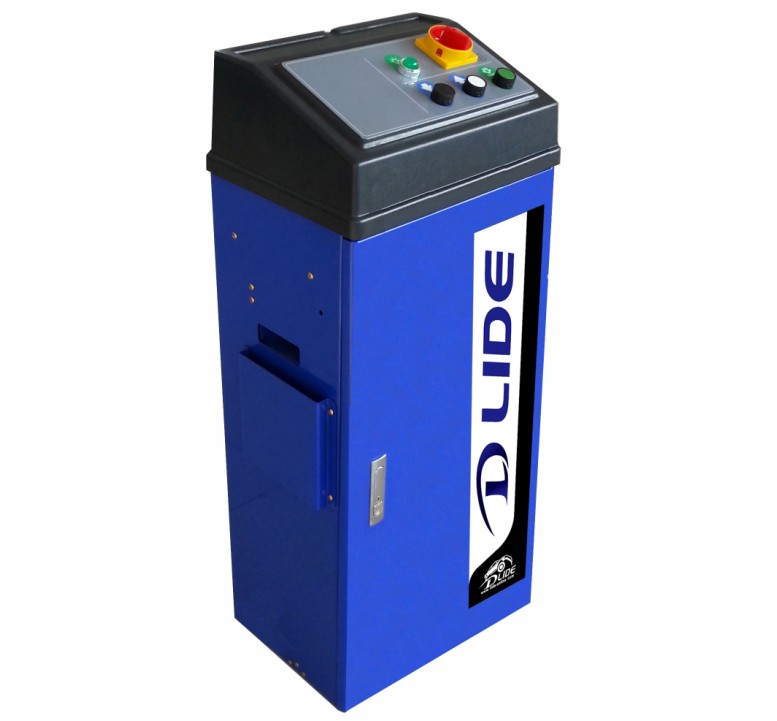

  Control Method   Control Box Panel & Wired Remote Controller
