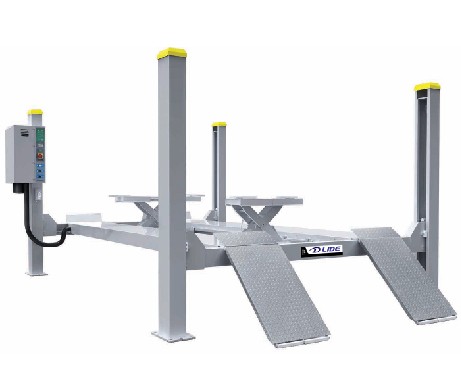

Product Type£ºL440E / L440M FOUR POST LIFT


Hydraulic cylinder located in the fixed platform and is thus perfectly protected.

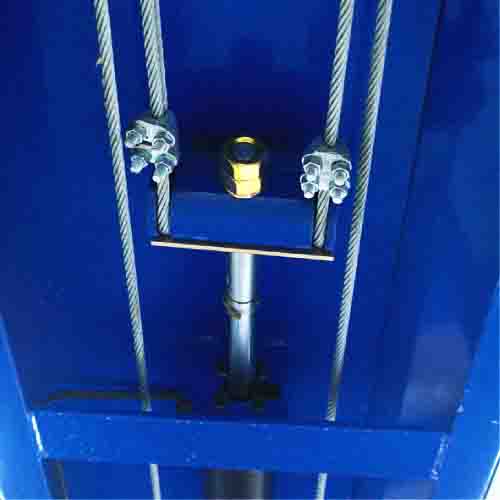

High resistance galvanized and pre-stretched lifting cable.

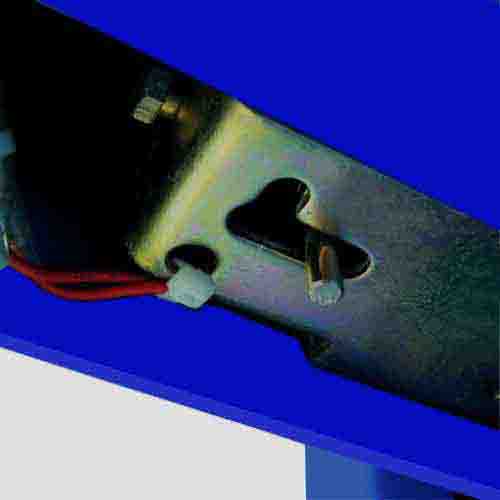

Adjustable parking ratchet rails ensure the platforms and cross members horizontal within 4 wheel alignment tolerances.
Automatic spring loaded in the event of cable breakage and ensures complete stability during parking.
Electric remote-controller.
Self large diameter pulleys.

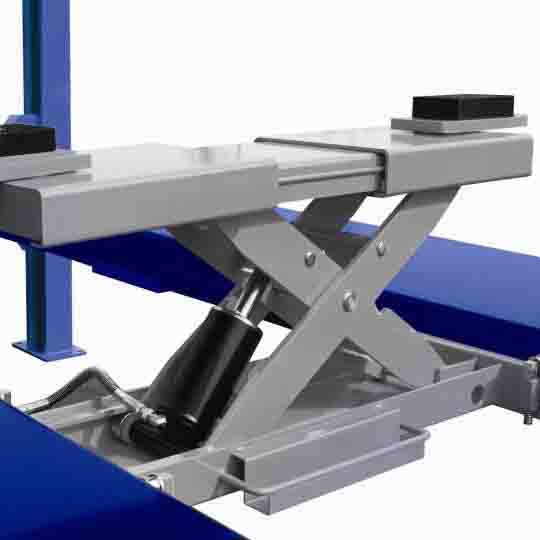

2pcs Hydraulic two-level 2ton scissor jack. (OPTION)
Detachable align platforms. (OPTION)







  Model No.

L440E(Electrical Release)   /

L440M(Manual Rlease Optional)

  Lifting Capacity

Main : 4,000kg / Jack : 2,000kg

5500kg option : L450E / L450M(Electrical/Manual)

6000kg option : L460E/L460(Electrical/Pneumatic)

  Max.Lifting Height Main : 1800mm / Jack : 510mm
  Min.Height Main : 184mm / Jack : 190mm
  Platform Length 4210mm / 4610mm / 5500mm
  Lifting Time About 50 sec.(Jack:8 sec.)
  Lowering Time About 35 sec.(Jack:5-15sec.)
  Power & Motor 1Ph(2.5HPx4Px220Vx50/60Hz)
  Power & Motor 3Ph((2HPx4Px220V/380Vx 50/60Hz)
  Operation Method Control panel and Wired reomote controller
