Product Type£ºL61S DOUBLE SCISSOR LIFT


¨¡ ¨¡
L61S ultrathin scissor lift according to EU standard design with high quality materials.
High-Performed durable four hydraulic cylinders composed by double pressure seals.
Master & Slave cylinder synchronization system.

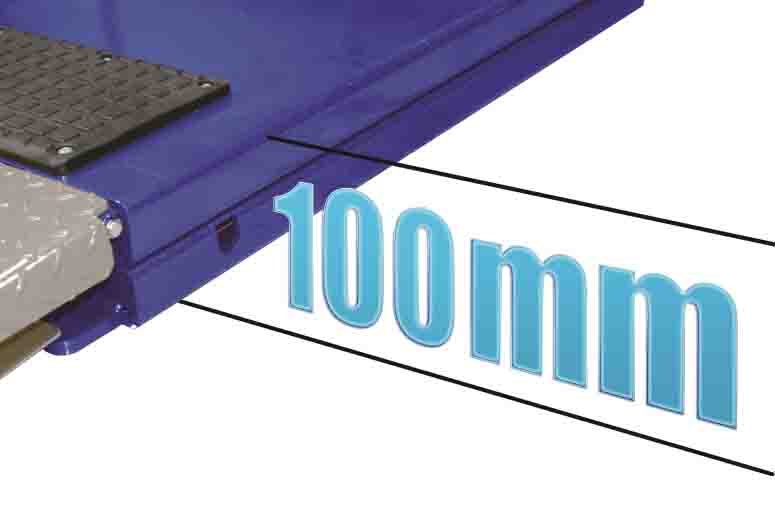

Extra low 100mm ultrathin height profile is more convinience for car drive in by operator.
Easy synchronization control system by special hydraulic valves.
Double function one touch ramp / extension platform for more car service.

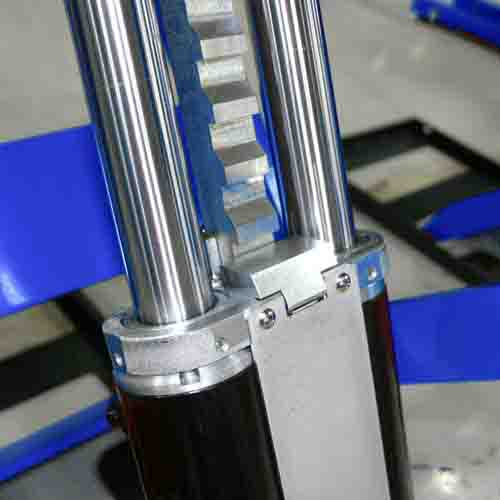

Air cylinder operated locking device.
Pneumatic safety locking device guarantee operator and vehicle safety and prevent emergencies.
Durable in use and looks good in appearance.
Pit frame for in-ground type. (OPTION)
Ex-factory pass by 115% dynamic and 150% static loading test.
Has CE Certification.

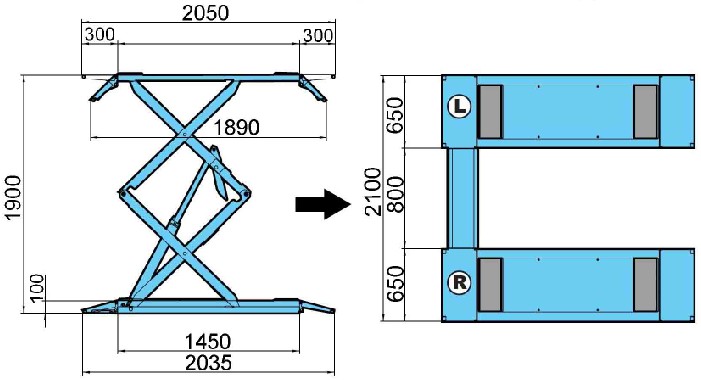

  Lifting Capacity   3500kg
  Max.Lifting Height   1900mm
  Min. Height   100mm
  Lifting Time   About 50sec.
  L¨¡owering Time   About 40sec.
  Style Option   In ground / On ground
  Net Weight   940kg/920kg (In ground/ On ground)
  Packing Size   2250(L)x800(W)x450(H)mm
  Weight   760kg
  Power & Motor   1Phase(2.5HP, 4P, 220V, 50/60HZ)
  Power & Motor   3Phase(2HP, 4P, 220V/380V, 50/60Hz)

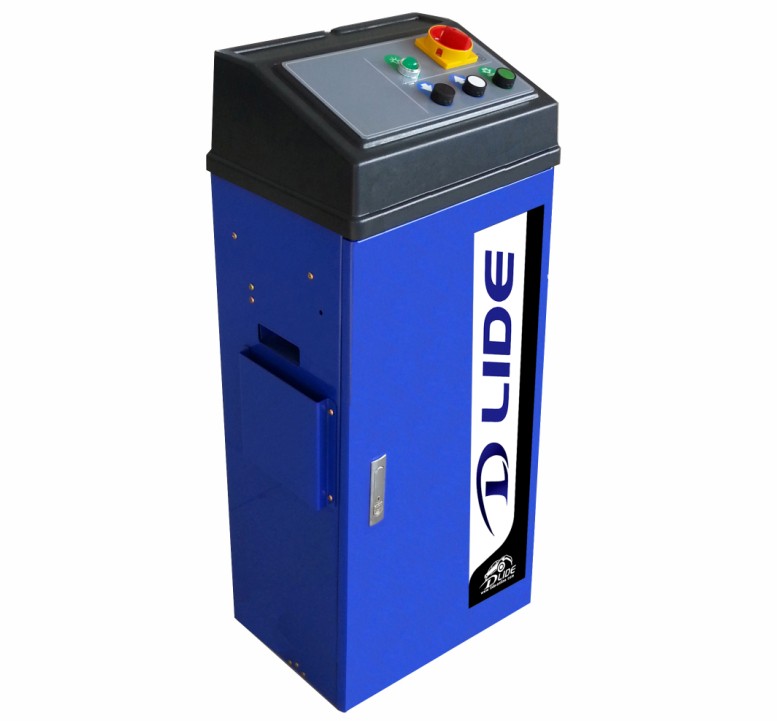

  Control Method   Control Box Panel & Wired Remote Controller
