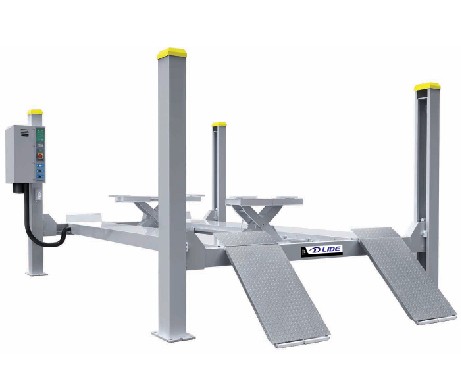

Product Type£ºL450E / L450M FOUR POST LIFT


Hydraulic cylinder located in the fixed platform and is thus perfectly protected.
High resistance galvanized and pre-stretched lifting cable.
Adjustable parking ratchet rails ensure the platforms and cross members horizontal within 4 wheel alignment tolerances.
Automatic spring loaded in the event of cable breakage and ensures complete stability during parking.

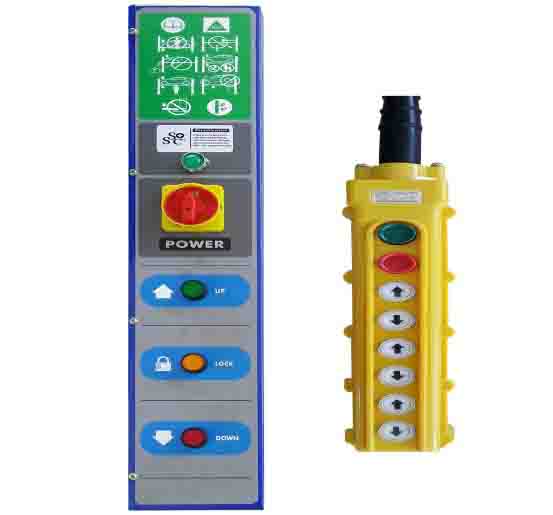

Electrical Release, Electric remote-controller. Optional Manual Release.
Self large diameter pulleys.
2pcs Hydraulic two-level 2ton scissor jack. (OPTION)
Detachable align platforms. (OPTION)







  Model No.

L450E(Electrical Release) /

L450M(Manual Rlease Option)

  Lifting Capacity

Main : 5000kg / Jack : 2500kg

6000kg option: L460E(Electrical Release) / L460A(Pneumatic Release)

  Max.Lifting Height Main : 1850mm / Jack : 510mm
  Min.Height Main : 184mm / Jack : 190mm
  Platform Length 5500mm
  Lifting Time About 50 sec.(Jack:8 sec.)
  Lowering Time About 35 sec.(Jack:5-15sec.)
  Power & Motor 1Ph(2.5HPx4Px220Vx50/60Hz)
  Power & Motor 3Ph((2HPx4Px220V/380Vx 50/60Hz)
  Operation Method Control panel and Wired reomote controller
