Product Type£ºL68S ALIGNENMENT SCISSOR LIFT


Design in accordance with EU standard, high quality super-thick steel.
High-Performed durable hydraulic cylinders composed by double pressure seals.
Sync. hydraulic block ensure High-Performed synchronization.
Air cylinder operate locking device with automatic engagement and pneumatic release system ensure safety.
Cable remote control for any vantage point operation. (Low voltage)

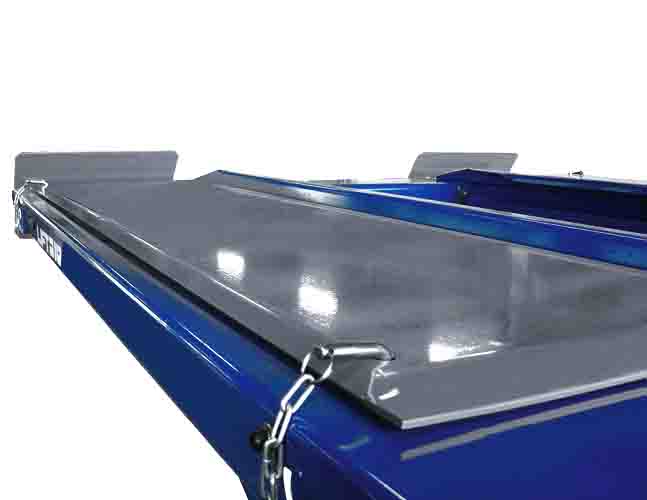

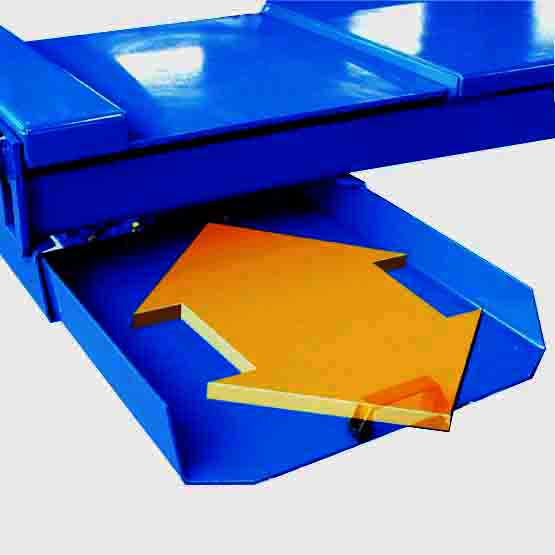

Front turn-table recesses and rear sliding plates for 4-wheel alignment operation.
It can be installed in ground or on ground.

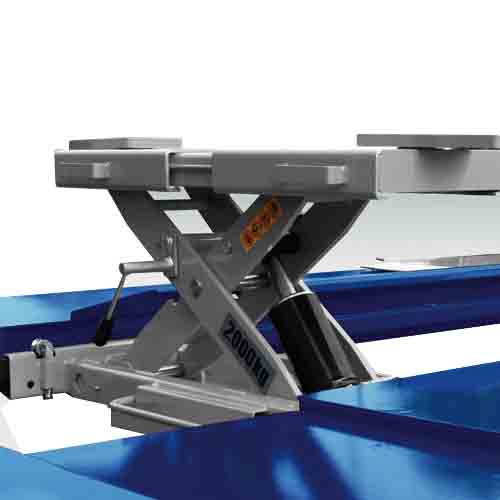

Hydraulic two-level 2.5 ton scissor jack. (OPTION)
Scissor jack extendability service more vehicles
115% dynamic and 150% static loading test.
Has CE Certification









  Model No.   L68S
  Lifting Capacity   Main : 4200kg Jack : 2500kg

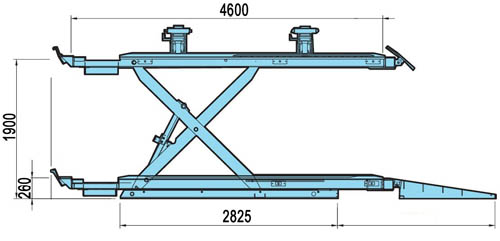

  Max.Lifting Height   Main : 1900mm Jack : 510mm
  Min.Height   Main : 260mm Jack : 190mm

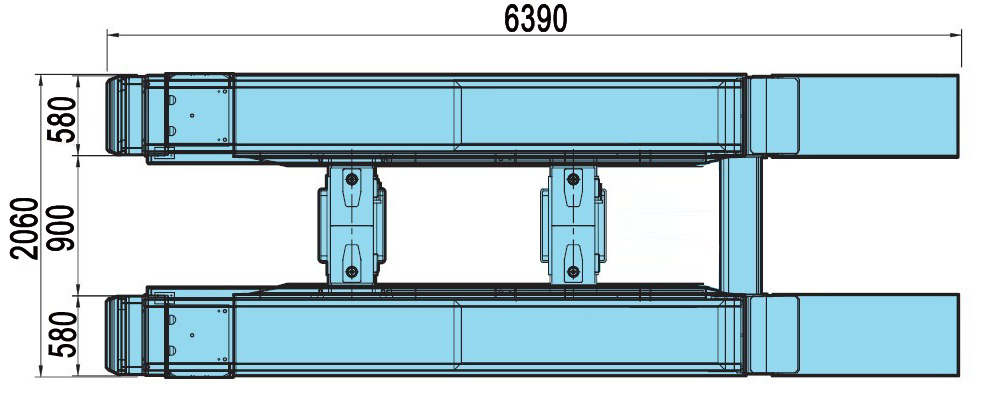

  Platform Length   4600mm
  Platform Width   580mm
  Platform Inside   900mm
  Lifting Time   About 58 sec. Jack:8 sec.
  Lowering Time   About 40 sec. Jack:5-15sec.
  Style Option   On ground / In ground

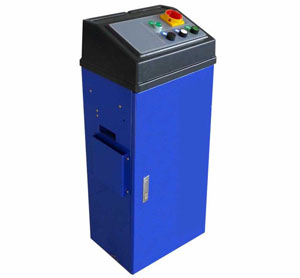

  Operation Method   Control panel and Wired remote controller
  Power & Motor   1Ph(2.5HPx4Px220Vx50/60Hz)
  Power & Motor   3Ph((2HPx4Px220V/380Vx 50/60Hz)
  Packing Size

  4800(L)x900(W)x1000(H)mm

  Weight   2600kg
