Product Type£ºLD-240 TWO POST LIFT


High-Performed durable cylinders provides powerful and safety lifting performance.
High quality pre-stretched synchronization wire rope.

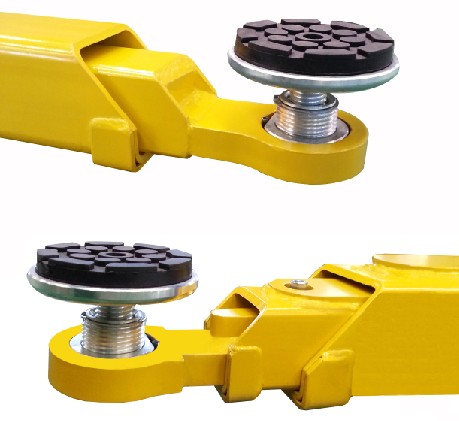

Double telescopic pads screw.
Automatic arm restraint.
Durable anti-friction carriage guides.
Electrical type release device.
Lowest height suit for luxury car.
115% dynamic and 150% static loading test.
With CE certificate.





  Model No.   LD-240
  Lifting Capacity   4000kg
  Lifting Height   1800/1845mm(option 1900/1945mm)
  Min. Height   Min.95mm- Max.135mm
  Total Height   2800mm
  Total Width   3470mm
  Column Inside   2830mm
  Lifting Time   About 50sec.
  Lowering Time   About 35sec.
  Net Weight   700kg
  Operation Method   Electrical Release
  Packing Size   2950(H)x1000(W)x500(H)mm
 Power & Motor   1Phase(2.5HP, 4P, 220V, 50/60HZ)
 Power & Motor   3Phase(2HP, 4P, 220V/380V, 50/60Hz)
