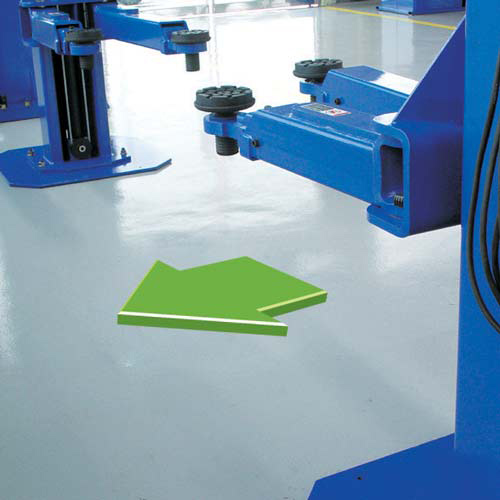

Product Type£ºLD-240T/240TE CLEARFLOOR TWO POST LIFT

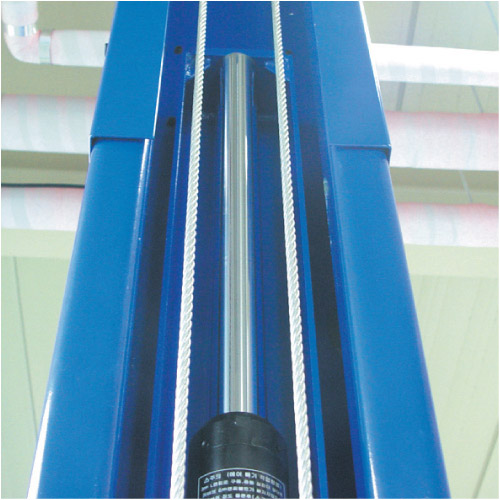

High-Performed durable RAM type cylinders in each post provides powerful and safety lifting performance.
High quality pre-stretched synchronization wire rope.
Double telescopic pads screw.
Automatic arm restraint.
Durable anti-friction carriage guides.
Hand lever for manual type locker release device.
Top limit touch bar and door protection rubber blocks protect the vehicle body.
Electrical type locker release device for LD-240TE (OPTION)
250mm height adjustable top cross bar. (Adjustable or Fixed is OPTION)
Lowest height suit for luxury car
115% dynamic and 150% static loading test
CE certification

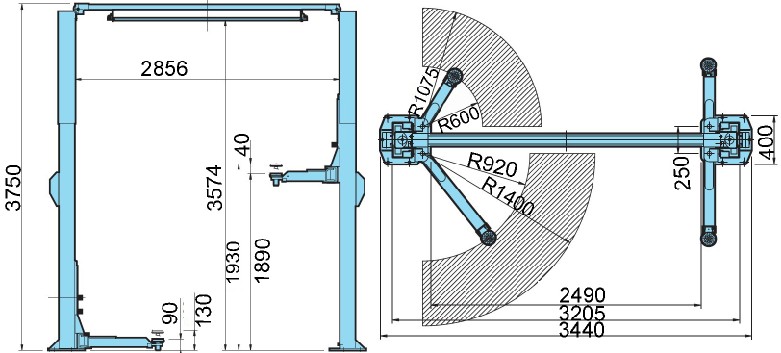

  Model No. LD-240T/240TE (Manual Release / Electrical Release)
  Lifting Height 1890-1930mm
  Min. Height 90-130mm
  Total Height 3750mm
  Total Width 3440mm
  Column Inside 2856mm
  Lifting Time About 40-60sec.
  Lowering Time About 30-45sec.
  Weight 760kg
  Operation Method Manual / Electrical Release
  Packing Size 2950(H)x1000(W)x430(H)mm
  Weight 760kg
  Power & Motor 1Phase(2.5HP, 4P, 220V, 50/60HZ)
  Power & Motor 3Phase(2HP, 4P, 220V/380V, 50/60Hz)
